NNLK 8130 – Line Impedance Stabilisation Network

NNLK 8130 – Line Impedance Stabilisation Network
NNLK 8130 – Line Impedance Stabilisation Network

NNLK 8130 (rear view)
NNLK 8130 (rear view)
The Schwarzbeck NNLK 8130 is a high-capacity Line Impedance Stabilisation Network (V-LISN) engineered for advanced EMI measurements. With support for extremely high current and voltage levels, it is ideal for demanding industrial and laboratory environments.

Frequency range:150 kHz – 30 MHz
AMN impedance:50 µH || 50 Ω
Maximum continuous current with fans actvated:4x 400 A
Maximum voltage:250 VAC 50/60 Hz;
400 VDC
Maximum voltage when using option 400/700 V:400 VAC 50/60 Hz;
800 VDC
Standard:CISPR 16-1-2
Connector for supply:Wing terminals 16 mm, removable
Connector for EuT:Wing terminals 16 mm, removable
Weight:~55 kg
Dimensions housing incl. wing terminals (WxHxD):448 mm x 473 mm x 738 mm
Connector to EMI receiver:BNC socket, 50 Ω

Datasheet NNLK 8130

Options:

  • Option Remote Control: Remote Control with built in power supply. LISN can be controlled by R&S or Schwarzbeck code, including remote control cable for your receiver type (Please specify your receiver type!). LISN can be selected from the R&S receiver menu or in the EMC32 software like an R&S LISN. No programming of the user interface necessary. Functions: path selection and PE grounded or via choke. LISN Remote Control
  • Option Temperature Control: The temperature monitor modul which is optional available for the NNLK LISN warns the user optical and acoustical when the temperature gets too high. It controls the fans of the LISN temperature-dependent, too and thus prevents overheating. If a critical temperature is reached the temperature control module indicates this optically and acoustically.
    NNLK Temperature Control
  • Option 400/700 V: 400/700 V Voltage to ground / Voltage between lines

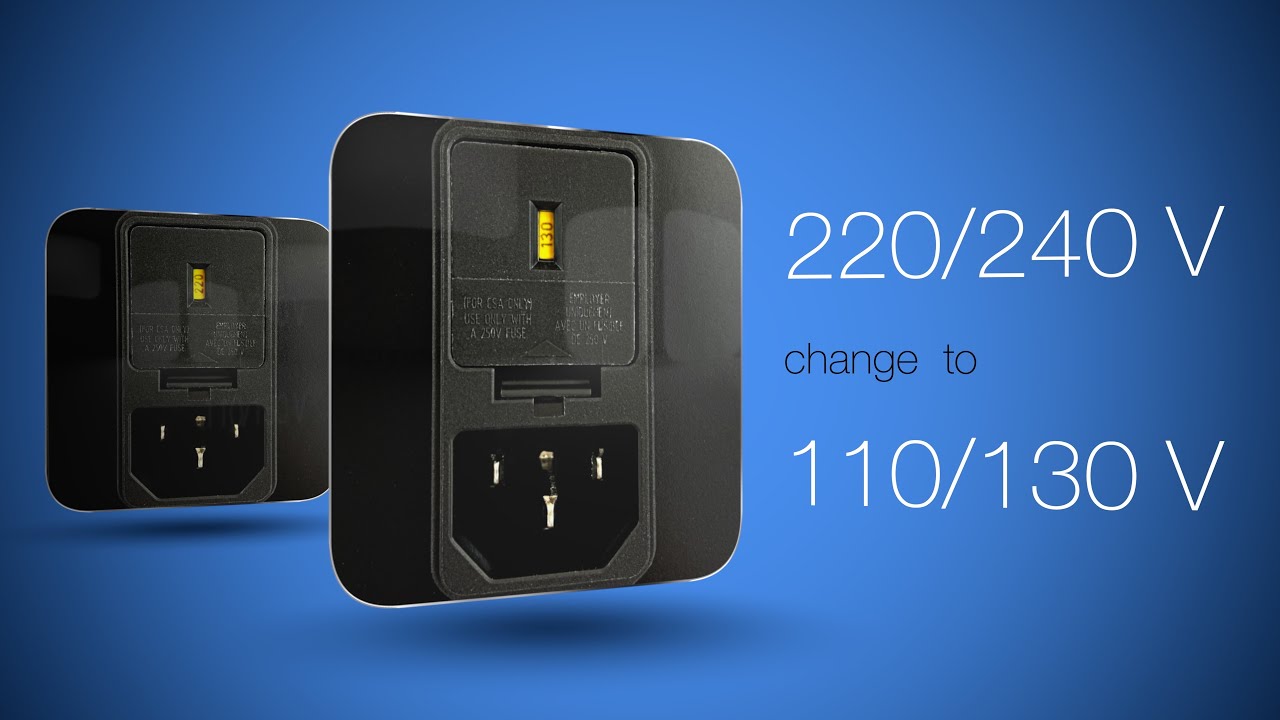

Video: Change 220/240V to 110/130V ↗︎ NNLK 8130 (LISN) and Other devices
